Drawing Circles

To add a circle to your diagram, follow these steps:

1. Click the Circle icon   in the Draw toolbox or select Circle from the Draw menu.
2. Move the cursor   in the drawing window to the position of the center of the circle and click once.
3. Move the cursor to draw the circle in the desired size and click again.

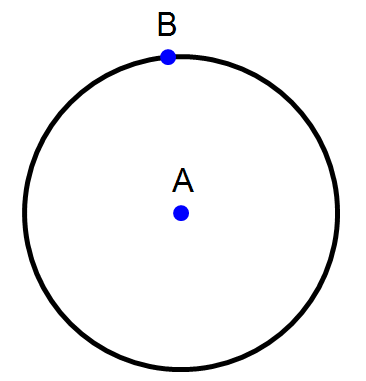

Notice the circle is displayed with 2 points, the center and a point on the perimeter.



Circle is a modal command.  You can continue making circles until you choose the select arrow or another drawing tool.

You can adjust the circle in Select   mode.
